Process of Analysis for Evaluating Fish Protection and Fish Downstream Migration

Print PDF

Process of Analysis for Evaluating Fish Protection and Fish Downstream Migration

Infographic in a manual on site specific evaluations of the efficiency of fish protection and bypass systems

Publication
Citation

Ecologic Institut & IGF Jena / FLUSS (2015): "Process of analysis for evaluating fish protection and fish downstream migration". Infographic published in: Schmalz, Wolfgang; Falko Wagner und Damien Sonny 2015: "Arbeitshilfe zur standörtlichen Evaluierung des Fischschutzes und Fischabstiegs.", page 83.

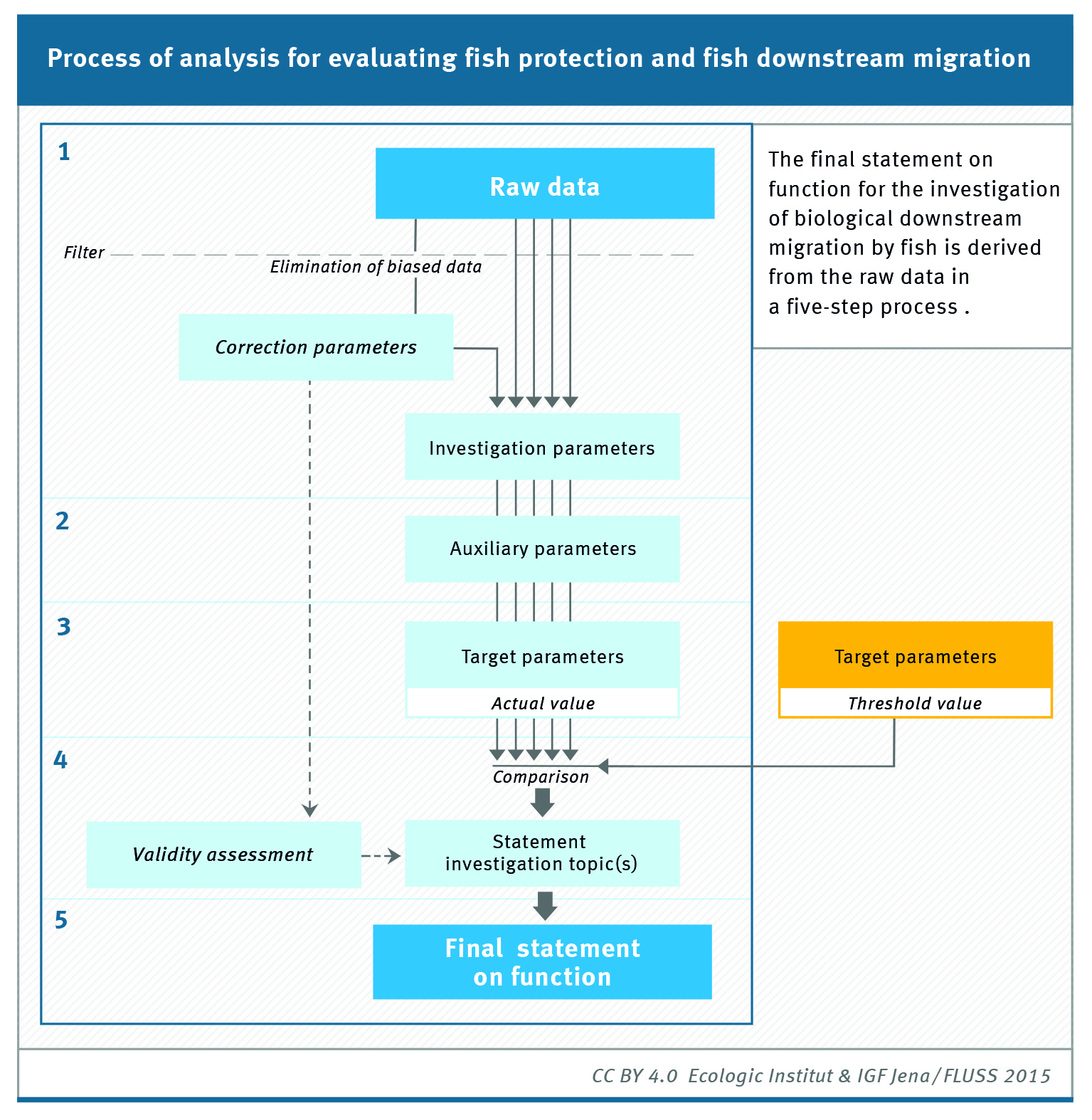

The infographic presents the five-step process for deriving the final statement on function for the investigation of biological downstream migration by fish.

The infographic is part of a manual that focuses on the site specific evaluation of the efficiency of fish protection and bypass systems. Standardized evaluation principles are defined to promote significant, comparable studies. The manual constitutes a framework for an objective evaluation process.

The infographic is published under a creative commons license CC BY 4.0. That means it can be copied and redistributed in any medium or format and for any purpose as long as appropriate credit to the authors is given.

The final statement on function for the investigation of biological downstream migration by fish is derived in a five-step process.
