Multistage Optimisation Process During Site-specific Evaluation of Fish Protection and Fish Downstream Migration

Print PDF

Multistage Optimisation Process During Site-specific Evaluation of Fish Protection and Fish Downstream Migration

Infographic in a manual on site specific evaluations of the efficiency of fish protection and bypass systems

Publication
Citation

Ecologic Institut & IGF Jena / FLUSS (2015): "Multistage optimisation process during site-specific evaluation of fish protection and fish downstream migration". Infographic published in: Schmalz, Wolfgang; Falko Wagner und Damien Sonny 2015: "Arbeitshilfe zur standörtlichen Evaluierung des Fischschutzes und Fischabstiegs.", page 101.

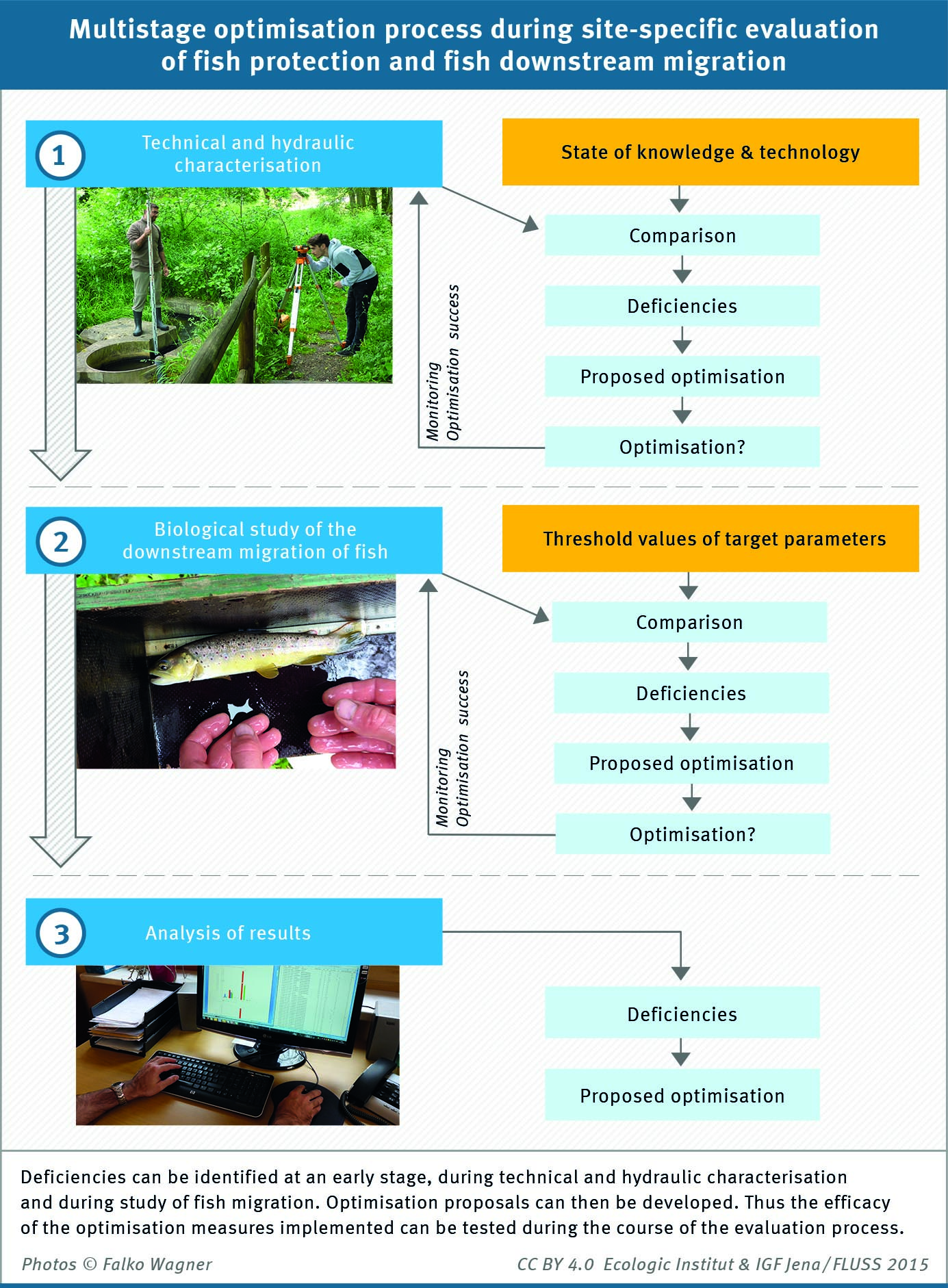

The infographic presents the optimisation process during site-specific evaluations. Deficiencies can be identified at an early stage, during technical and hydraulic characterisation and during study of fish migration. Optimisation proposals can then be developed. Thus the efficacy of optimisation measures implemented can be tested during the course of the evaluation process.

The infographic is part of a manual that focuses on the site specific evaluation of the efficiency of fish protection and bypass systems. Standardized evaluation principles are defined to promote significant, comparable studies. The manual constitutes a framework for an objective evaluation process.

The infographic is published under a creative commons license CC BY 4.0. That means it can be copied and redistributed in any medium or format and for any purpose as long as appropriate credit to the authors is given.

The efficacy of optimisation measures implemented can be tested during the course of the evaluation process.
