Aspekte der Begleituntersuchungen im Atlas


In total, monitoring studies at 111 of 142 sites have been entered in the Atlas of Fish protection & fish descent. The most frequent accompanying investigation is the function control (80), followed by monitoring (76).

© Ecologic Institute 2022 | CC BY 4.0

Print

Aspekte der Begleituntersuchungen im Atlas

Publication
Citation

Ecologic Institute 2022: Aspekte der Begleituntersuchungen im Atlas. Infographic published in: Keuneke, Rita; Edith Massmann and Stephan Naumann 2022: Fischschutz- und Fischabstiegsmaßnahmen – Praxisbeispiele im Überblick. Atlas für den Wissenstransfer zu Fischschutz und Fischabstieg. Ingenieurbüro Floecksmühle GmbH, Umweltbundesamt: Aachen, Dessau-Roßlau.

Download infographic!

In total, accompanying investigations are entered in the Atlas Fish Protection & Downstream Fish at 111 of 142 sites. The most frequent accompanying investigation is the functional control (80), followed by monitoring (76).

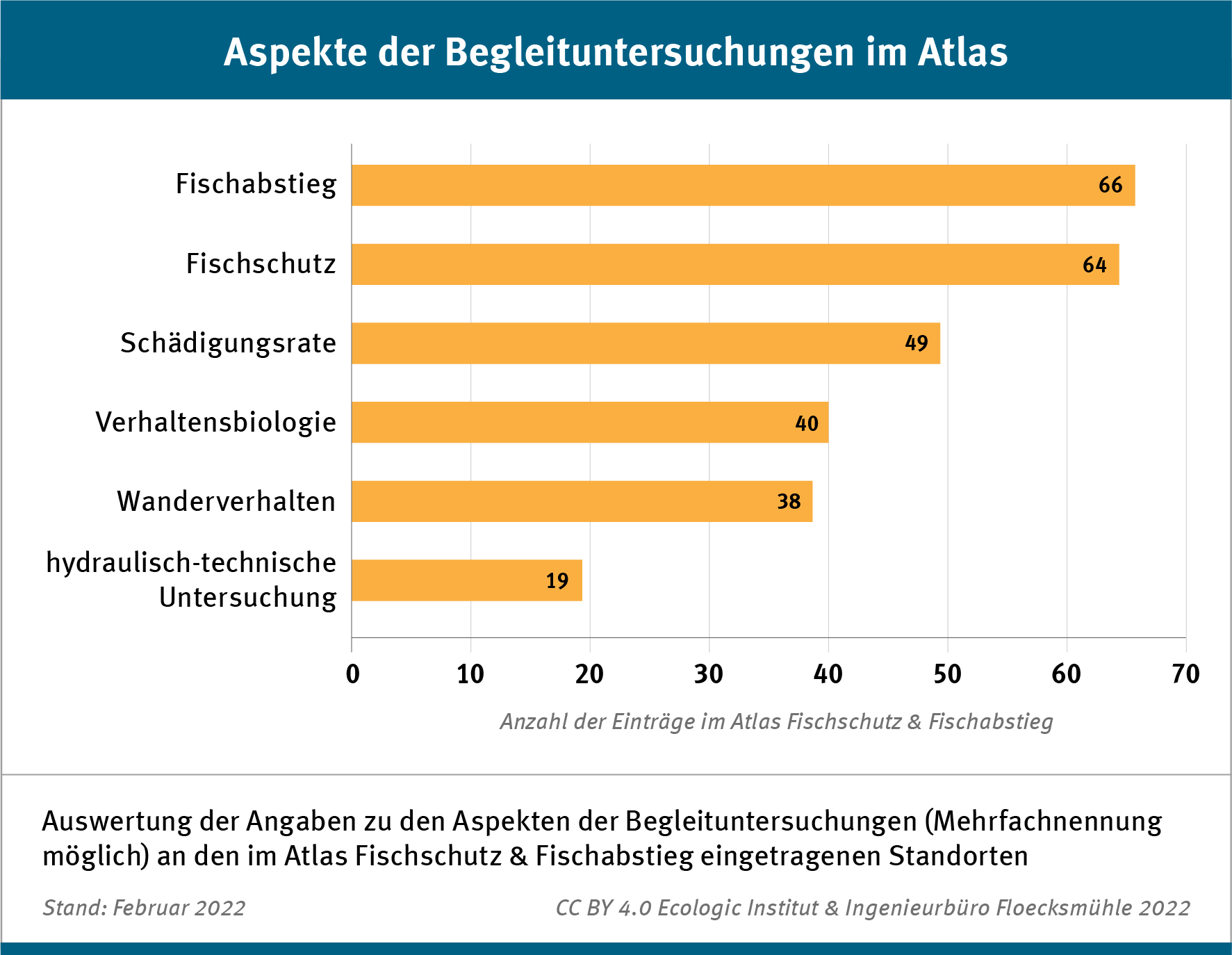

The accompanying investigations can be specified in the atlas with regard to the investigation aspects. The aspects fish protection, fish descent, behavioral biology, migration behavior, damage rate and hydraulic-technical investigation are available as filter criteria (multiple entries possible). The most frequent aspects of the accompanying investigations entered in the atlas were fish (66) and fish protection (64) followed by the damage rate (49). The infographic is part of a fact sheet on fish protection and downstream fish migration measures.

The infographic is published under a creative commons license CC BY 4.0. That means it can be copied and redistributed in any medium or format and for any purpose as long as appropriate credit to the authors (Ecologic Institute, Ingenieurbüro Floecksmühle) is given.
